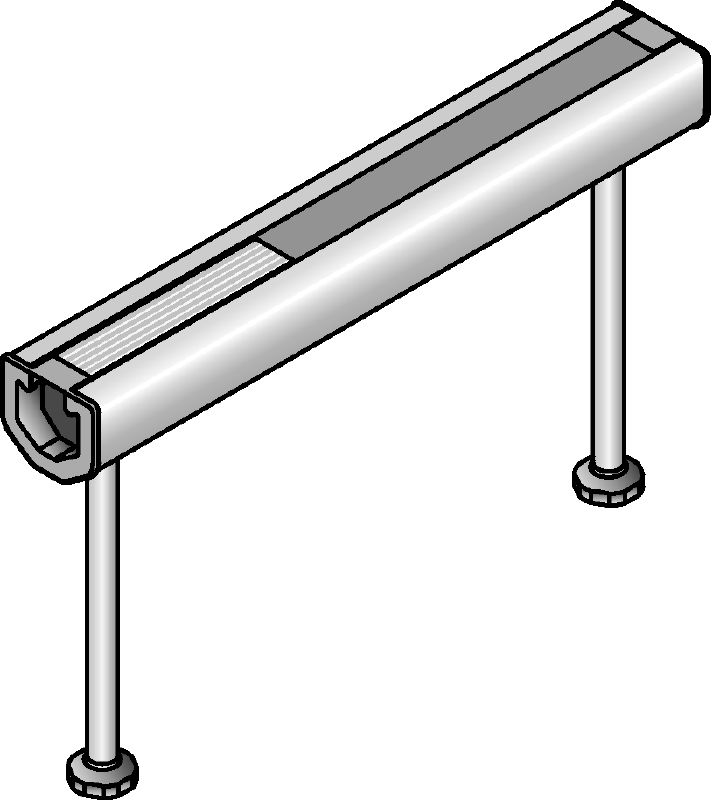

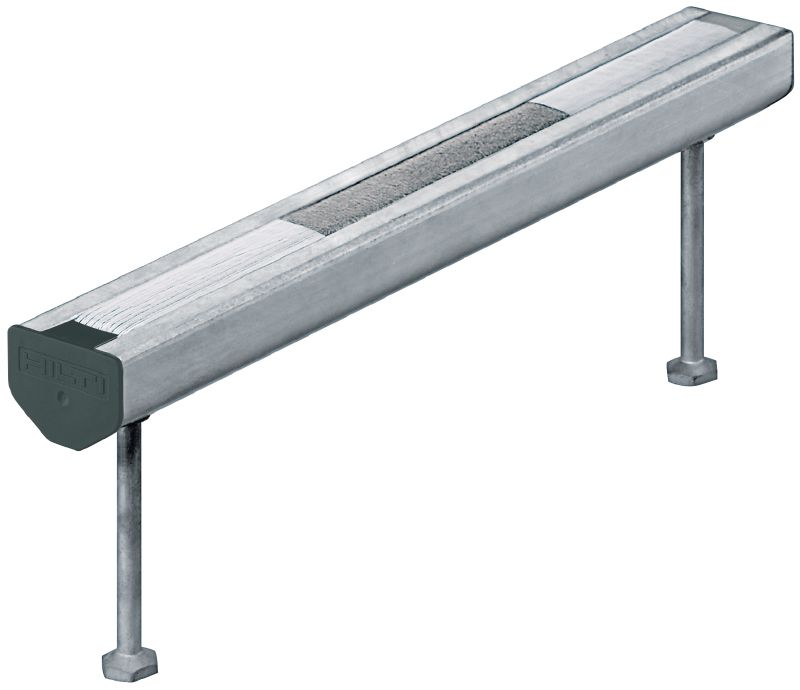

HAC-T Standard anchor channel
New productItem #r9192378
Serrated cast-in anchor channels in standard sizes and lengths with the approvals needed for 3D loads
- Material, corrosion: Carbon steel, HDG (Hot-Dip Galvanized)/Sherardized

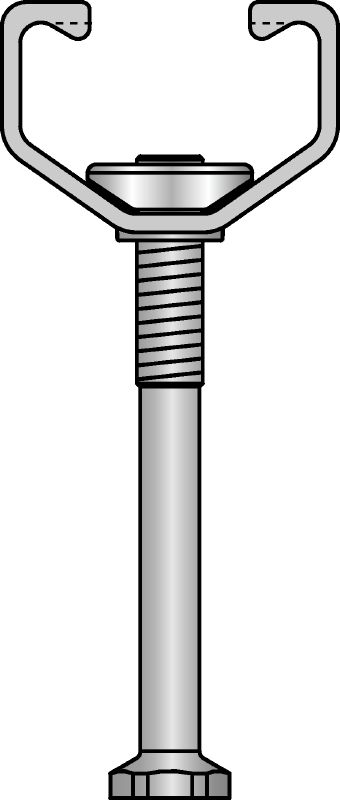

- Channel profile: HAC-30
- Length: 200 mm
Customers also searched for halfen, dynagrip, HZA or serrated
Features
- High-performance, safer solution – designed for demanding 3D applications
- Approved for static, fatigue, seismic (ICC-ESR 3520) and fire loading
- Serrated HAC-30 Anchor Channel is compatible with Hilti MQ41 installation components
- Low-energy manufacturing – cast-in anchor channels can contribute to environmental certification of construction projects
- Customizable – options available for virtually any specification
Applications
- Curtain wall façades (e.g. fixing curtain wall elements with brackets)
- Elevators (e.g. fixing guiderails, sliding doors or divider beams)

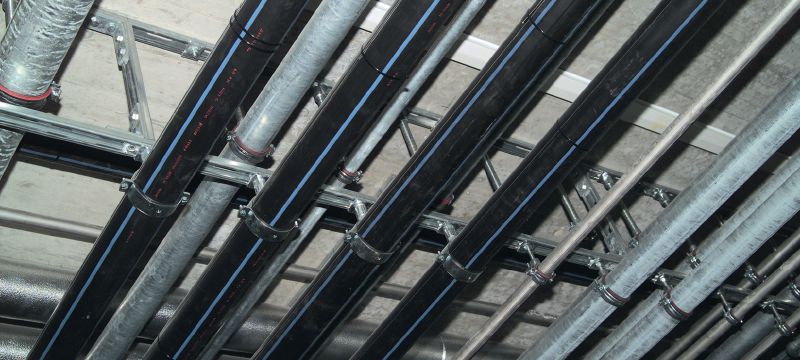

- Building appliances (e.g. heating, ventilation)
- Power plants
- Projects with high environmental standards
For approval or certificate information, please see individual items.
Product Information
Technical Data
Documents
-
- ICC-ESR 3520 for HAC-V Anchor Channel Systems in Cracked and Uncracked Concrete incl. LABC and FBC Supplement (Aug. 2024), English, [ 3.7 MB ]
- ETA 11/0006 Hilti HAC(-V) anchor channel, English, German, Polish, [ 14.5 MB ]
- ETA 11/0006 for HAC cast-in anchor (ETAG -, Option -), English, [ 6.9 MB ]
- ETA_11_0006_HAC_Anchor_Channels, German, [ 6.9 MB ]
