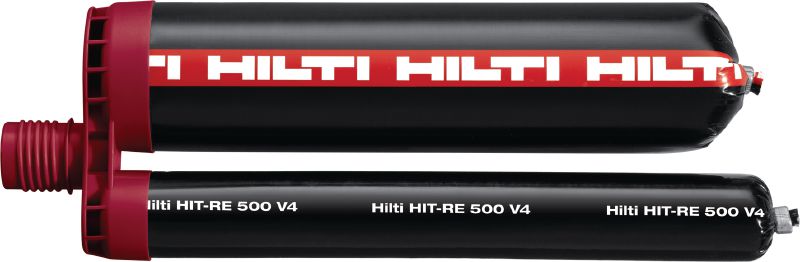

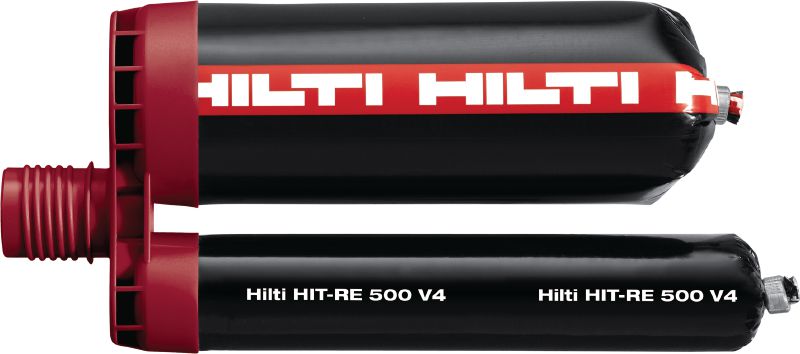

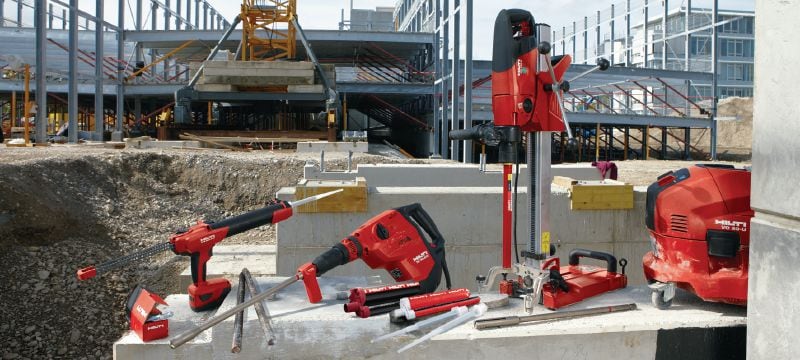

HIT-RE 500 V4 Epoxy anchor
New productItem #r12560055
Ultimate-performance injectable epoxy mortar with approvals for rebar connections and heavy-duty anchoring
- Approvals / Test reports: ETA, Fire
- Seismic loading: Yes
- Fatigue loading: Yes
Features
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@724fb090, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@bf462a4c, unit=null, value=Ultimate performance and model code-compliant design for virtually any concrete-to-concrete and steel-to-concrete connections – ETA assessment for anchoring inc. C1 and C2 seismic and ETA for rebar inc. fire and seismic}], id=CHA_ADVANTAGE_01, multiValue=false, name=Advantage 01}
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@afd7b5fd, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@7ee8081, unit=null, value=The first epoxy mortar qualified according to EAD 332402-00-0601 for concrete-to-concrete connections – rigid connections can now be designed and executed with post-installed rebars without splices according to the newest design method TR069}], id=CHA_ADVANTAGE_02, multiValue=false, name=Advantage 02}

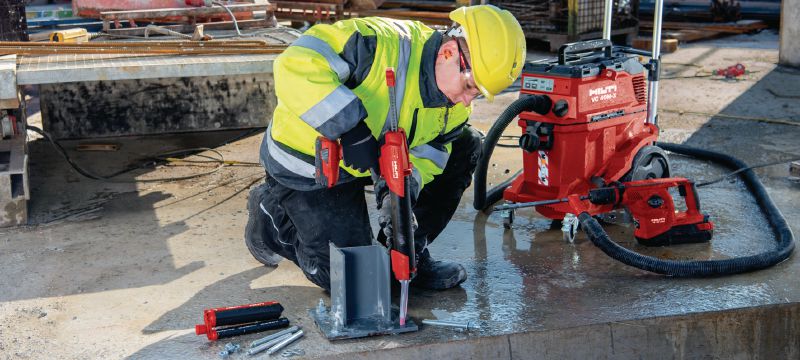

- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@e78298e2, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@a0c5ac3e, unit=null, value=Suitable for the toughest jobsite conditions – works even in diamond-cored, wet or underwater holes (depending on rod specification and approvals), extremely deep injections, large diameters and at temperatures down to -5°C / 23°F}], id=CHA_ADVANTAGE_03, multiValue=false, name=Advantage 03}
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@dbcb28dd, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@b79632a5, unit=null, value=Improved bond strength in the most demanding applications – such as cracked concrete and seismic C2 conditions}], id=CHA_ADVANTAGE_04, multiValue=false, name=Advantage 04}
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@8460abec, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@5c50be78, unit=null, value=Easier to specify and order – use PROFIS Engineering to design baseplate connections and PROFIS Rebar to design concrete-to-concrete connections according to EC2, TR069 or the Hilti Design Method}], id=CHA_ADVANTAGE_05, multiValue=false, name=Advantage 05}
Applications

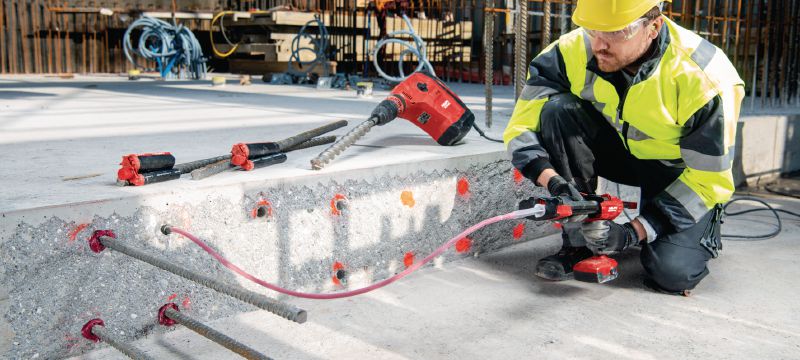

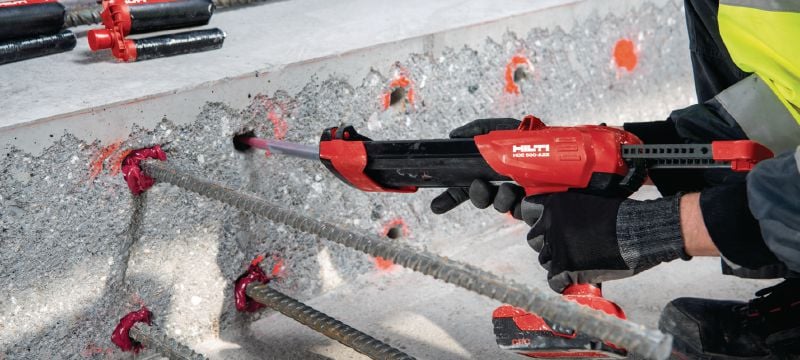

- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@ca2d9273, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@1bf1b57f, unit=null, value=Structural connections with post-installed rebar (e.g. slab extensions, wall/column connections, stairs, foundations, etc.)}], id=CHA_APPLICATION_01, multiValue=false, name=Application 01}
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@10f312c, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@558bd5e8, unit=null, value=Structural renovation of buildings, bridges and other civil works, retrofitting and re-strengthening of concrete members}], id=CHA_APPLICATION_02, multiValue=false, name=Application 02}

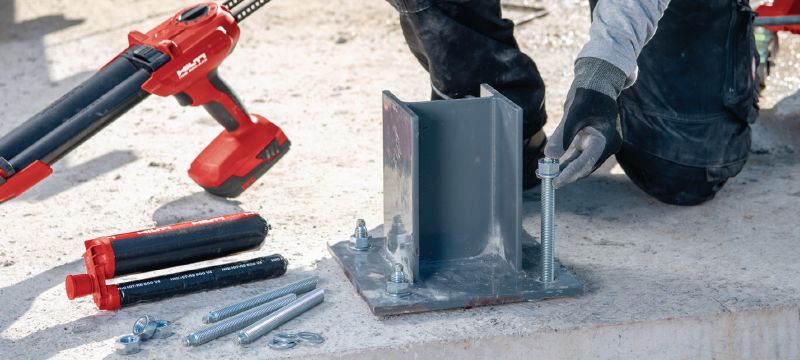

- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@4dd7495a, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@3875f8fc, unit=null, value=Anchoring structural steel connections (e.g. steel columns, beams, etc.)}], id=CHA_APPLICATION_03, multiValue=false, name=Application 03}

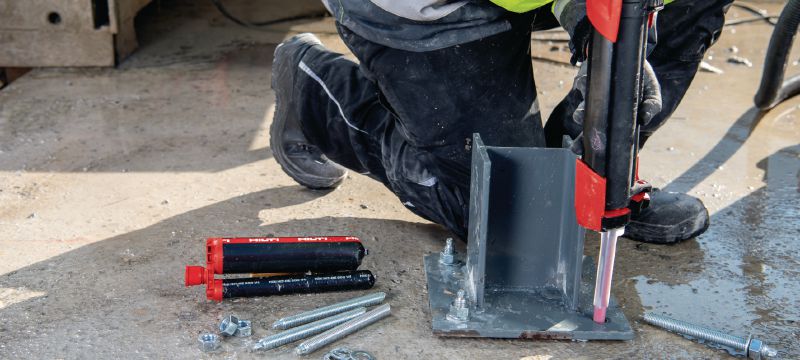

- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@e978590b, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@85970b6d, unit=null, value=Fastening structural baseplates, including in cracked concrete and challenging seismic conditions}], id=CHA_APPLICATION_04, multiValue=false, name=Application 04}

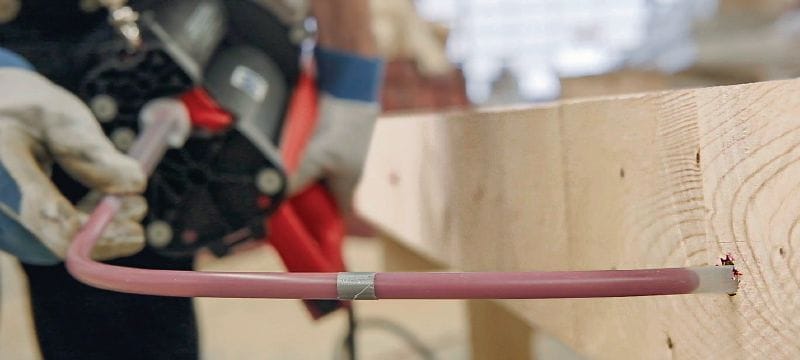

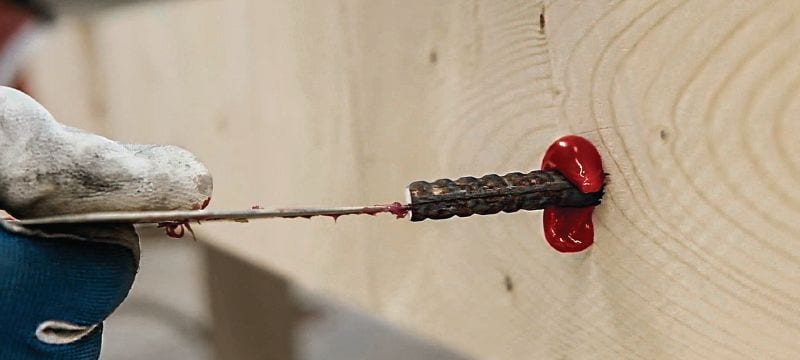

- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@c35ae616, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@5d052ec4, unit=null, value=Fastening in natural stone and wood, including GLT and CLT made from spruce, pine or fir}], id=CHA_APPLICATION_05, multiValue=false, name=Application 05}
For approval or certificate information, please see individual items.
Product Information
Technical Data
Documents
-
- ETA-20/0475 HCC-K, English, German, Polish, French, [ 3.8 MB ]
- ETA-20/0697 HCC-U, English, German, French, [ 14.9 MB ]
- ETA-20/0541 HIT-RE 500 V4 Anchor EC2 100 years , English, German, Polish, French, [ 8.9 MB ]
- ETA-20/0793 HIT-RE 500 V4 Rebar EC2 Seismic, English, French, [ 6.9 MB ]
- ETA-23/0277 HAS-U A4 Fatigue, English, German, Polish, [ 3.9 MB ]
- ETA-20/0539 HIT-RE 500 V4, English, German, French, Polish, [ 3.7 MB ]
- ETA-20/0540 HIT-RE 500 V4 Rebar EC2 100 years, English, German, French, Polish, [ 11.5 MB ]
-
- Technical data sheet for HIT-RE 500 V4 injectable mortar in Concrete to Concrete, English, [ 918.5 kB ]
- Technical data sheet for HIT-RE 500 V4 injectable mortar in Steel to Concrete, English, [ 722.2 kB ]
- Concrete-to-Concrete Handbook for EU framework, English, [ 18.7 MB ]
- White paper EOTA TR 069 in Post-installed Reinforcement, English, [ 1.3 MB ]
- White Paper Bridges Post-Installed Solution, English, [ 3.4 MB ]
- White paper post installed rebar in Tunneling, English, [ 1.6 MB ]
- White Paper Tips & Tricks On-site Anchor Testing, English, [ 1.5 MB ]
- White paper Anchor On-site Testing, English, [ 1.2 MB ]
- White paper Ungrouted stand-off base plates EU, [ 1.2 MB ]
- Whitepaper SOFA W4607: Improved design for anchors undershear loading, English, [ 1.8 MB ]
- White Paper Grouted stand-off base plates EU, English, [ 894.9 kB ]
- TR 066 White paper W4595 (EN), English, [ 2.3 MB ]
Instructions for use videos
-
RE 500 V4 How-To Installation with HDB (16:9, EN)
-
RE 500 V4 How-To Underwater Injection (16:9, EN)
-
RE 500 V4 How-To Installation with hammer drill (16:9, EN)
