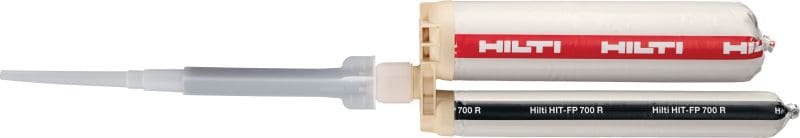

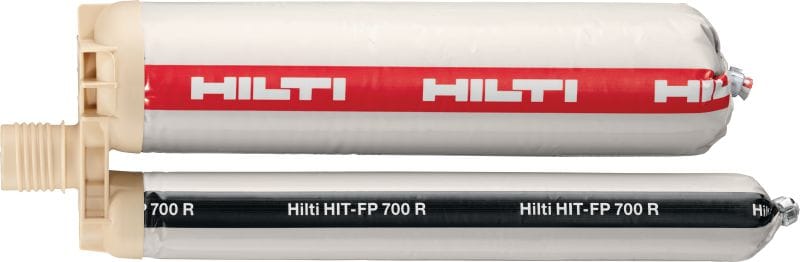

HIT-FP 700 R Injectable cementitious adhesive anchor
New productItem #r13812960
Injectable cementitious adhesive anchor for fire-resistant structural rebar connections
- Base materials: Concrete (cracked), Concrete (non-cracked)
- Approvals / Test reports: DIBt, ETA, Fire, Seismic
- Seismic loading: Yes
Customers also searched for fire resistant chemical anchor, fire resistant injectable anchor, fire resistant adhesive anchor, fire resistant anchor or fire resistant mortar
Features
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@986734da, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@5d241a42, unit=null, value=Fire-resisting cementitious adhesive anchor with bond strength performance compared with a cast-in rebar even at temperatures up to 500°C – HIT-FP 700 R provides you the possibility of an efficient and code-compliant solution for most fire-rated structural connections e.g. EC2, Part 1}], id=CHA_ADVANTAGE_01, multiValue=false, name=Advantage 01}
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@92adf7fd, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@d48f7e81, unit=null, value=Extensive range of assessment documents – ETA documentation for fire, static and 100 year working life available}], id=CHA_ADVANTAGE_02, multiValue=false, name=Advantage 02}

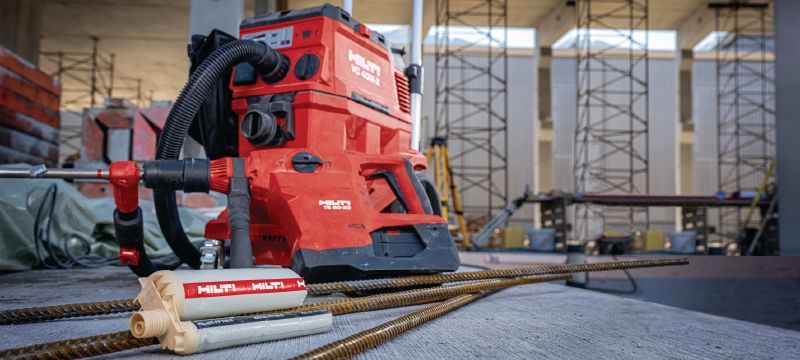

- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@2a6543ca, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@68d52a56, unit=null, value=Compatible with the Hilti SafeSet technique – save time on-site and minimize room for installation errors by using hollow drill bits with a compatible Hilti vacuum cleaner}], id=CHA_ADVANTAGE_03, multiValue=false, name=Advantage 03}
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@133334ff, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@c77c69c3, unit=null, value=Easier to handle – this cementitious adhesive anchor is compatible with your existing Hilti adhesive dispensers, helping to minimize wastage and time, especially when used with Hilti HDE battery-powered dispensers}], id=CHA_ADVANTAGE_04, multiValue=false, name=Advantage 04}
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@387356f7, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@e1ade74d, unit=null, value=Specifier support available – use Hilti PROFIS Engineering software to simplify the design of post-installed fire-rated concrete-to-concrete connections, or contact your local Hilti Engineering Team for advice on complex projects}], id=CHA_ADVANTAGE_05, multiValue=false, name=Advantage 05}
Applications
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@1ccf6a00, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@3478d112, unit=null, value=Fire-rated post-installed rebar connections, including splice connections between new and existing concrete, new columns, column and beam extensions and closing of openings}], id=CHA_APPLICATION_01, multiValue=false, name=Application 01}
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@2cb0b92c, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@80974de8, unit=null, value=Post-installed concrete-to-concrete civil applications, including bridge extensions and diaphragm trench walls}], id=CHA_APPLICATION_02, multiValue=false, name=Application 02}
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@2669bd06, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@828404d0, unit=null, value=Compared to vinylester and epoxy mortars, FP 700 R is characterized by a longer curing process, similar to normal weight concrete. This product is engineered in such a way as to allow a seamless integration with current state-of-the-art rebar installation processes}], id=CHA_APPLICATION_03, multiValue=false, name=Application 03}
For approval or certificate information, please see individual items.
Product Information
Technical Data
Documents
-
- White paper HIT-FP 700 R, English, [ 2.1 MB ]
- Concrete-to-Concrete Handbook for EU framework, English, [ 18.7 MB ]
- White paper Anchor On-site Testing, English, [ 1.2 MB ]
- White paper post installed rebar in Tunneling, English, [ 1.6 MB ]
- White Paper Tips & Tricks On-site Anchor Testing, English, [ 1.5 MB ]
