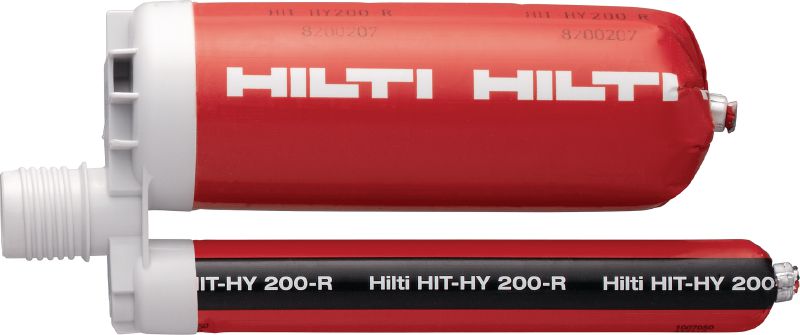

HIT-HY 200-R Adhesive anchor
New productItem #r4993
Ultimate-performance injectable hybrid mortar with approvals for rebar connections and heavy-duty anchoring
- Base materials: Concrete (non-cracked), Masonry (solid)
- Approvals / Test reports: ETA
- Seismic loading: Yes
Customers also searched for epoxy for cracked concrete, no hole cleaning epoxy, post installed rebar or SafeSet epoxy
Features
- No hole cleaning required with the revolutionary new HIT-Z anchor rod

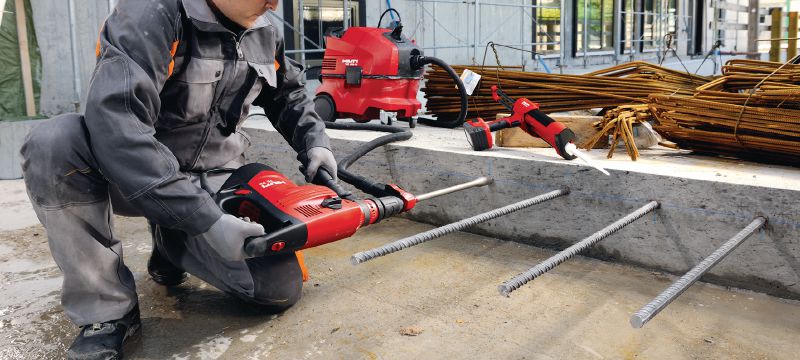

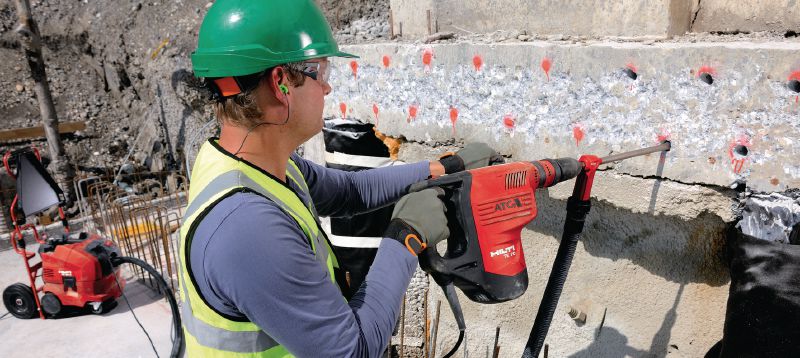

- Automatic hole cleaning with TE-CD and TE-YD drill bits in combination with Hilti vacuum cleaners
- Fulfills the requirements of the most demanding ICC-ES and ETA C2 approvals for seismic applications
- Working time optimized for rebar and deep anchoring applications
- Post-installed rebars perform like cast-in connections
Applications

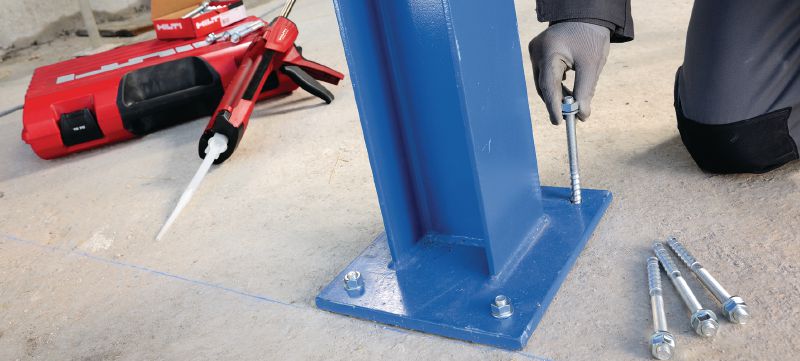

- Anchoring structural steel connections (e.g. steel columns, beams)
- Anchoring secondary steel structures (e.g. racking, guard rails, sound barriers)
- Anchoring safety barriers, balustrades, fire escape staircases
- Seismic strengthening / retrofitting and bracing of reinforced concrete buildings

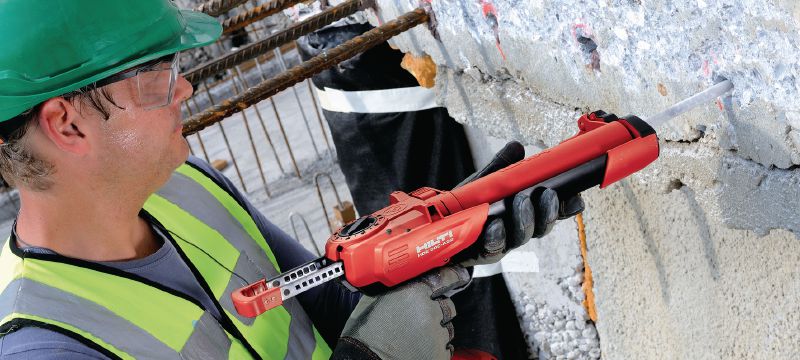

- Structural splices / straight connections with post-installed rebars
For approval or certificate information, please see individual items.
Product Information
Technical Data
Documents
-
- ETA-18/0972 HIT-HY-200-A/R V3 with HAS-D Anchor Static, English, German, Polish, [ 16.3 MB ]
- ETA-12/0084 HIT-HY-200-R Anchor EC2 & TR055 50 years, English, German, [ 3.4 MB ]
- ETA-18/0978 HIT-HY-200-A/R V3 with HAS-D Anchor Fatigue, English, German, Polish, [ 17.7 MB ]
- DIBt Z-21.3-2155 issued 2024 03 19, German, [ 807.3 kB ]
