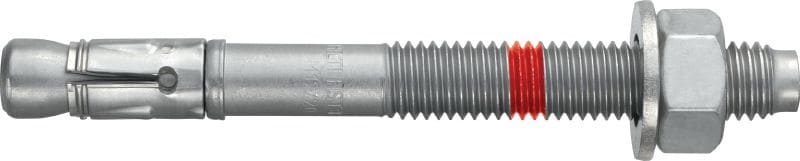

HST3-R Stainless steel wedge anchor
New productItem #r3987999
Ultimate-performance wedge anchor for demanding static and seismic loads in cracked concrete (A4 stainless steel)
- Material, corrosion: Stainless steel, A4
- Head configuration: Externally threaded
- Approvals / Test reports: ETA, Fire, FM (Factory Mutual), Seismic
Features & Applications
Features & Applications
Features
- More economical, optimized anchor designs – larger range of embedment depths available and flexible edge and spacing, making more economical designs using smaller baseplates and façade brackets a possibility
- Faster and easier to install correctly –requires no hole cleaning (M8-M20) and ready for automated pre-tensioning with a Hilti Adaptive Torque tool (M8-M16)
- Design support available – use PROFIS Engineering Suite to simplify steel-to-concrete connection design, or contact your local Hilti Engineering Team for advice on more complex projects
- Easier inspections – head marking showing anchor type and length to simplify quality control after setting
Applications
- Stainless steel wedge anchor for all safety-relevant fastenings in cracked and uncracked concrete in corrosive environments
- All safety-relevant fastenings in seismic loading conditions, category C1 for non-structural elements and category C2 for structural elements

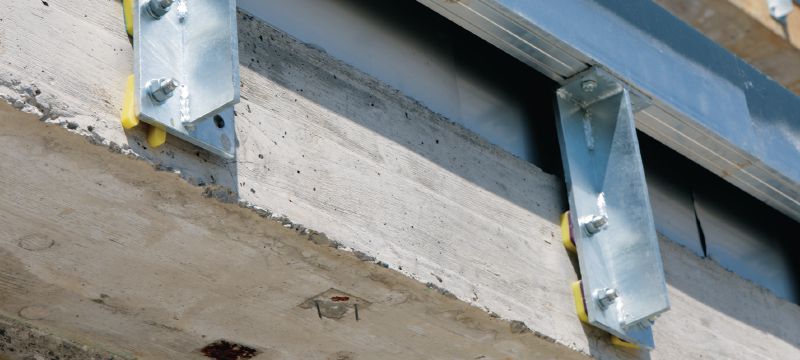

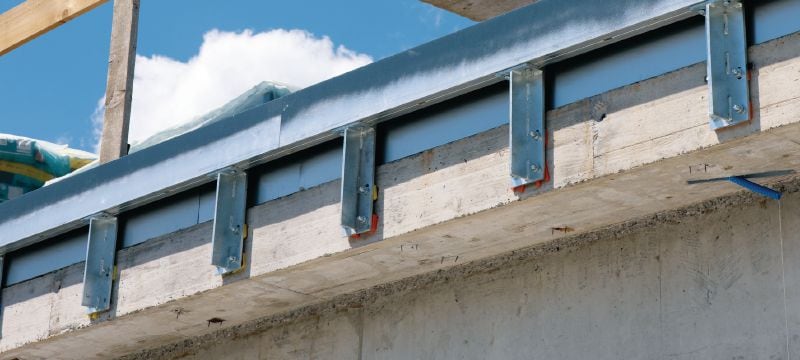

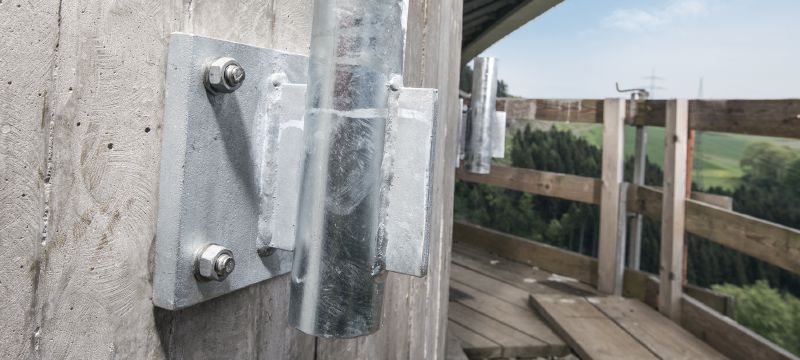

- Fastening baseplates, handrails, façade systems, machinery or racking to concrete when corrosion resistance is required
- Suitable for use in corrosive environments
For approval or certificate information, please see individual items.
