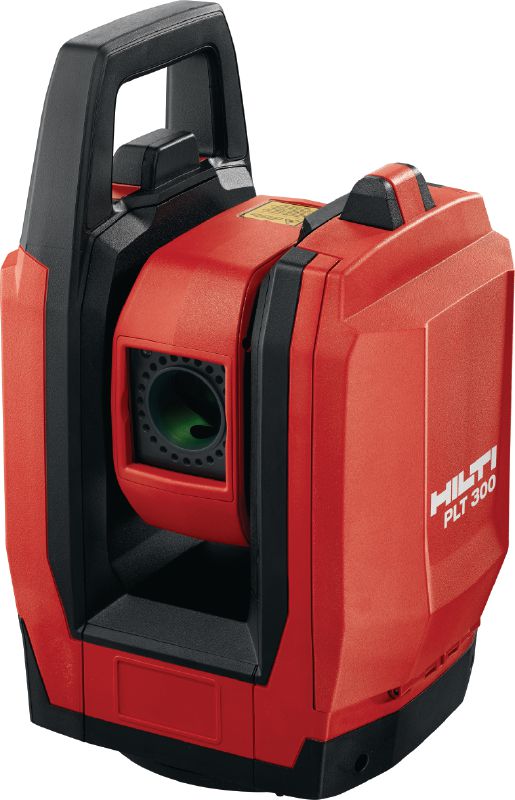

PLT 300 Digital layout tool
New productItem #r4728599
Automated construction layout tool to speed-up jobsite stake-out using digital methods and BIM
- Distance measurement accuracy: ±3 mm + 10 ppm
- Operating distance range – of remote control (diameter): 2 - 100 m
- IP protection class: IP 55 (EN 60529)
Features & Applications
Features & Applications
Features

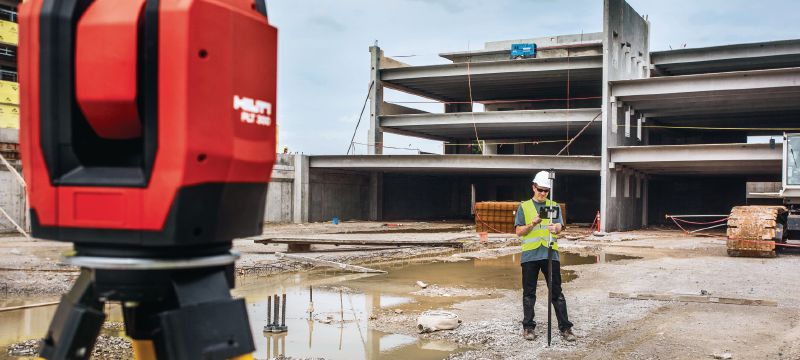

- One-person construction layout and measuring – digital layout tools cut the labor needed for construction staking in half, while significantly increasing the number of points possible in one day

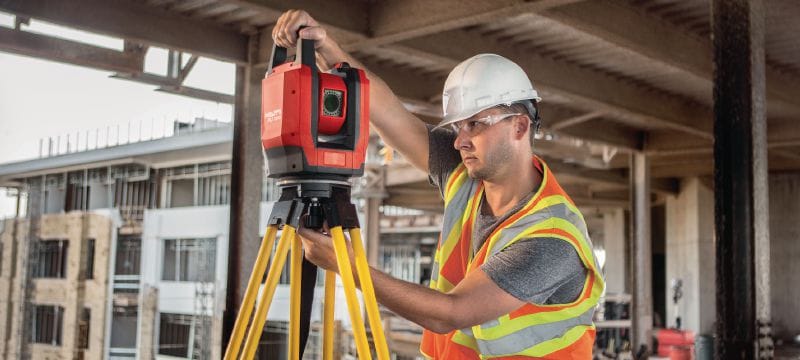

- Get started faster – automatic stationing and tilt compensation for quick setup on the jobsite

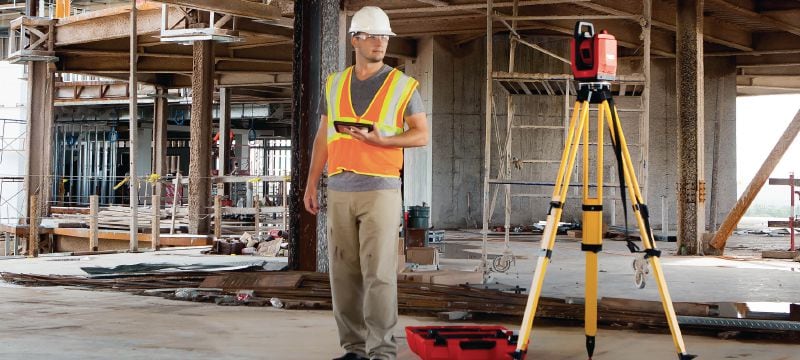

- Digitized construction layout using green laser and tablet – simply tap the stake-out point you need on the controller, and the layout tool will localize it in reality using the motorized green laser pointer
- BIM-ready digital layout tool – bring the accuracy and efficiency of BIM-to-Field to your jobsites by switching to digital construction layout tools

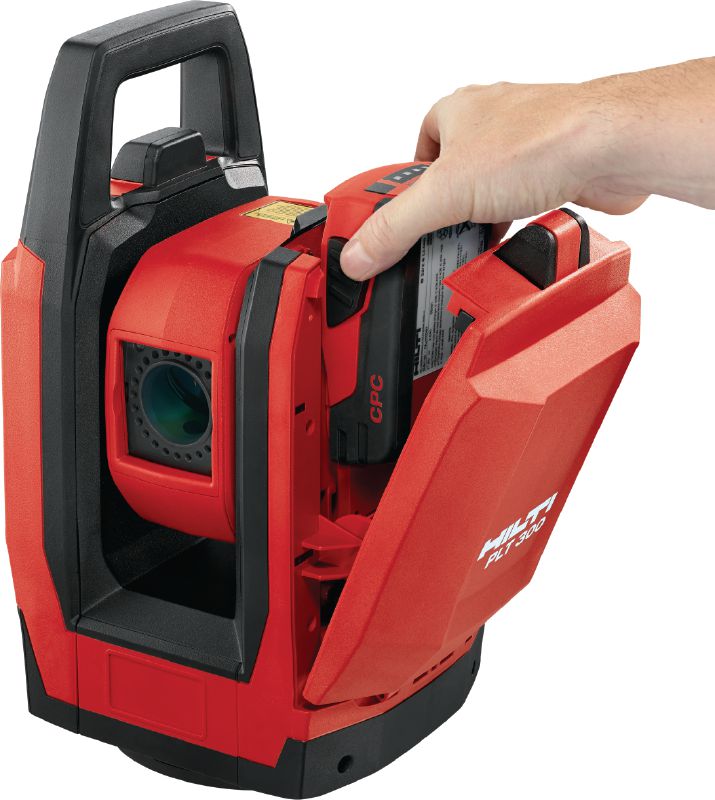

- On the Hilti CPC battery platform – power this digital layout tool using the same batteries as all your Hilti 22V power tools (not compatible with Nuron batteries)
Applications

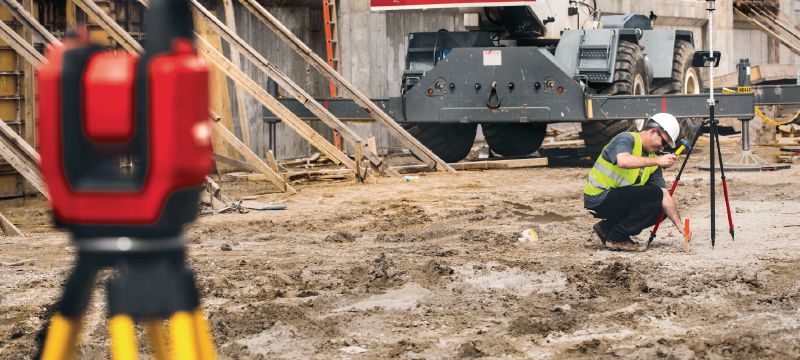

- Staking out 2D and 3D positions on the jobsite using digital CAD/BIM input
- Laying out formwork, positions for excavation and MEP fastening points on floors and ceilings
- Laying out single and dual slopes
- Laying out and transferring building control lines
- As-built measurement of existing features, including real-time area and volume calculations
