PLC 400 Layout tablet
New productItem #r8732644

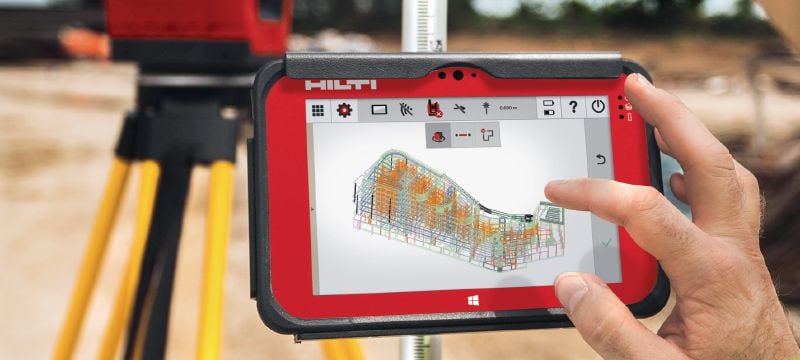

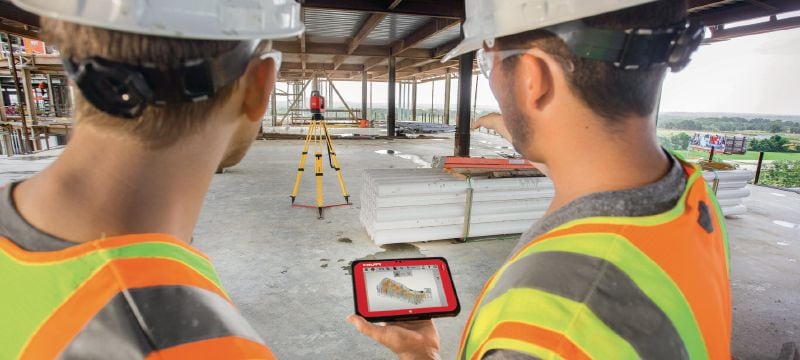

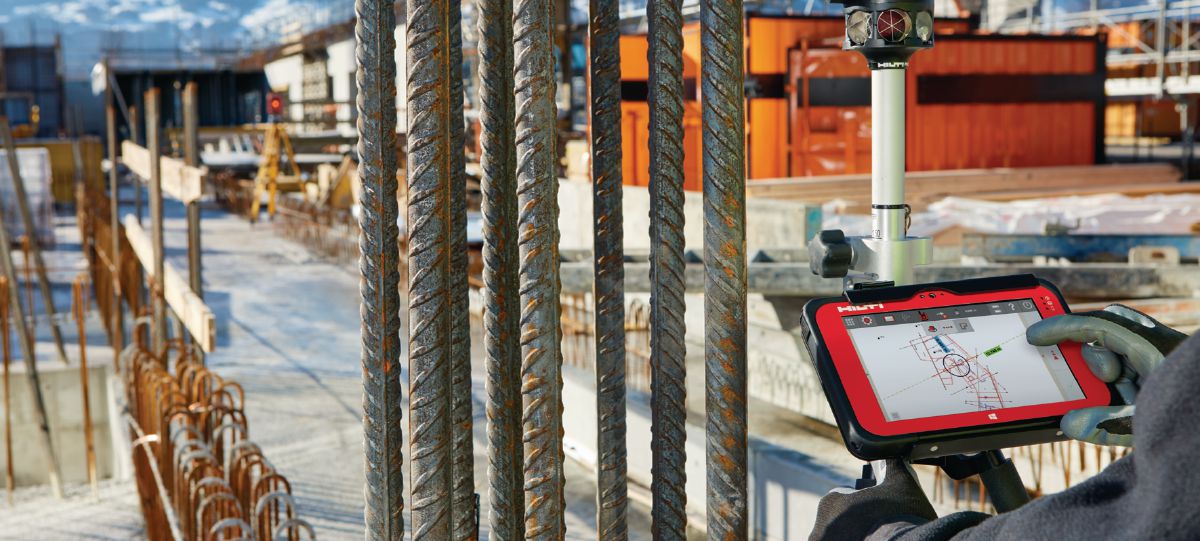

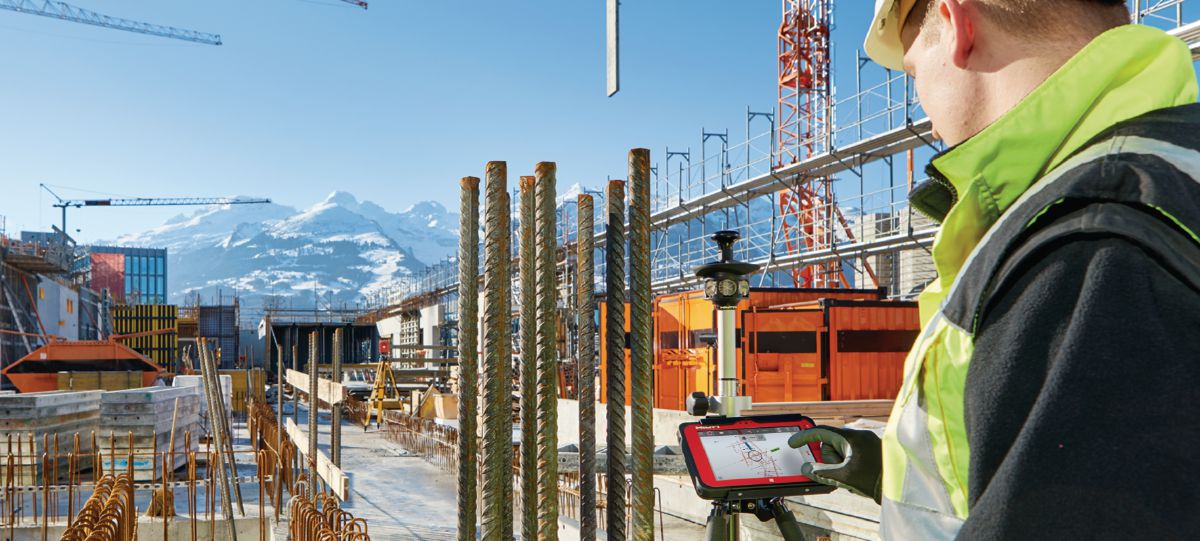

Rugged field tablet for layout applications
- IP protection class: IP 65 (EN 60529)
- Maximum operating time: 8 h
- Battery type: Li-Ion
Features & Applications
Features & Applications
Features
- Layout directly in 2D or 3D from CAD and BIM data for an effective workflow
- One common hardware and software platform to operate all Hilti Robotic stations

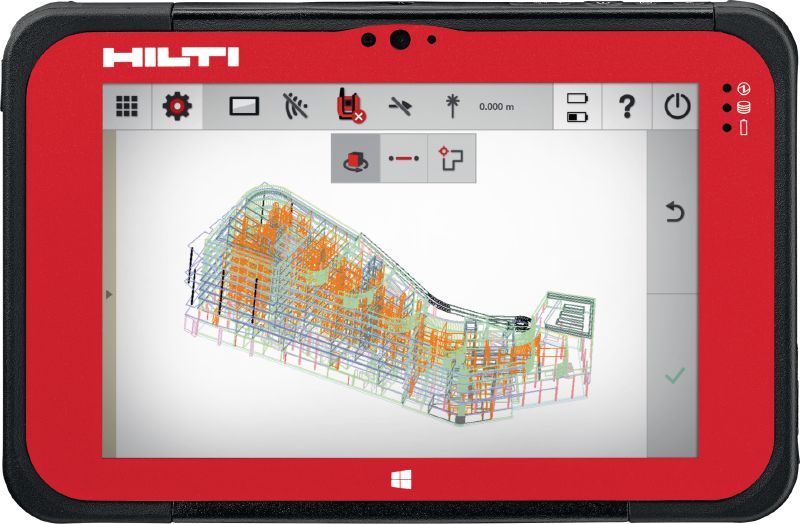

- Rugged tablet with 7" display designed to withstand tough jobsite conditions
- Intuitive Hilti Construction Layout software for jobsite layout and measuring tasks
Applications
- Layout of 2D and 3D points and lines directly from CAD and BIM data
- Transferring heights in flat-plane, single-slope or dual-slope mode
- Measuring existing features and performing as-built for documentation
- The data transfer via integrated Cloud access increases the productivity and makes layout data available to job site immediately
- The remote support allows a specialist to directly support the user by direct visual interaction on the tablet screen
