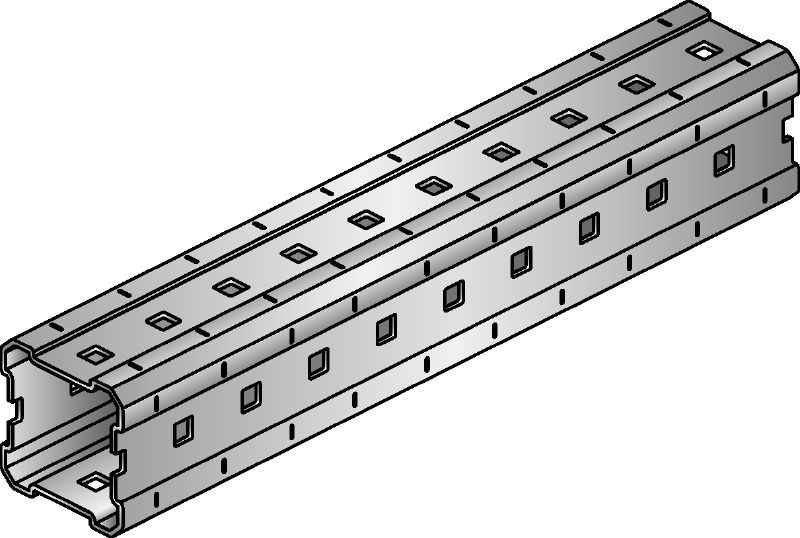

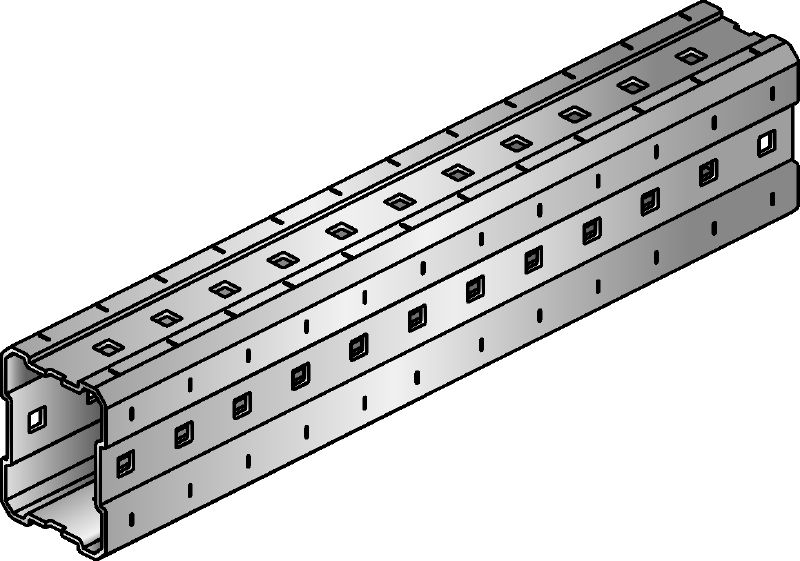

MI Installation girder
New productItem #r3131
Hot-dip galvanized (HDG) installation girders for constructing adjustable, heavy-duty MEP supports and modular 3D structures
- Height: 90 mm
- Material composition: DD11 MOD – HN 555-4, S235JR – EN10025-2
- Surface finish: Outdoor Coated - HDG
Features & Applications
Features & Applications
Features
- No welding required – modular structures are faster to assemble, easier to modify and fully reusable
- Built for heavy loads – you can use MI girders when strut channels lack the required load capacity, torsion resistance or rigidity
- Versatile – pipes can be installed on each one of the girder's four sides simultaneously
- Hot-dip galvanized – MI girders are suitable for modular structures and pipe supports in moderately corrosive environments
- Compatible with Hilti Adaptive Torque tool – helps tighten supported connectors to the correct pretension using a compatible impact wrench together with SI-AT module
Applications

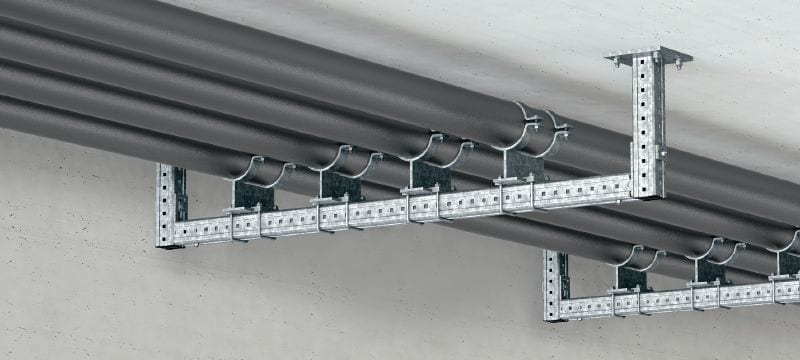

- Heavy-duty MEP supports, such as for industrial or heavy commercial pipes
- Modular 3D structures, such as access platforms
- Adjustable ceiling grids, such as for medical equipment in operating theaters
