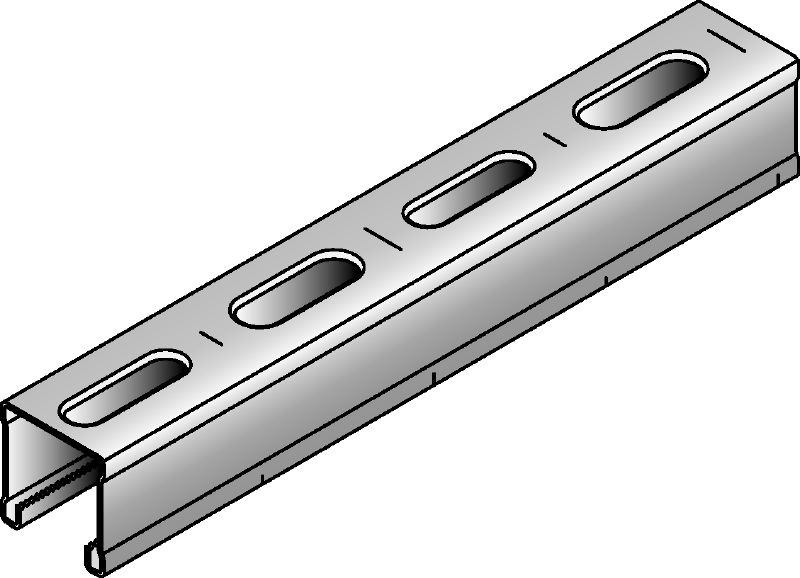

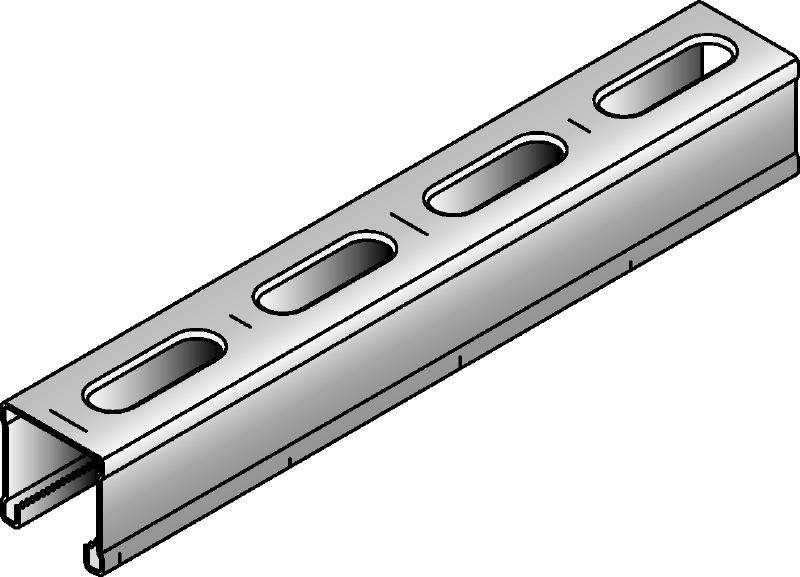

MM-C-30 channel
New productItem #r6133
Galvanized 30 mm high MM strut channel for light-duty applications
- Height: 30 mm
- Material thickness: 1 mm
- Material composition: S250GD - DIN EN 10346
Features & Applications
Features & Applications
Features
- C-profile with serrated edges – for optimized pull-out and shear capacity
- Optimized back slots – for quicker, more flexible anchor fastening
- Pre-marked dimensions – for rapid installation, assembly and cutting
- Modular installation channel system – for versatility and flexibility
- The Hilti MM system meets many requirements set by the leading green building standards (LEED®, DGNB®, BREEAM®, etc.)
Applications

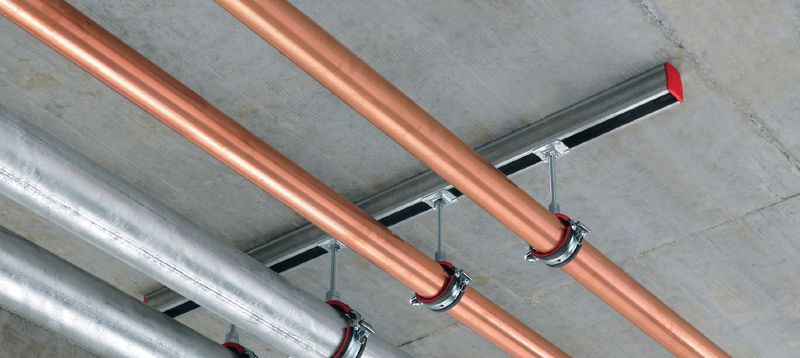

- Light- and medium-duty pipe support system
- Fastening ventilation ducts and cable trays
- Recommended for use in dry interiors
For approval or certificate information, please see individual items.
