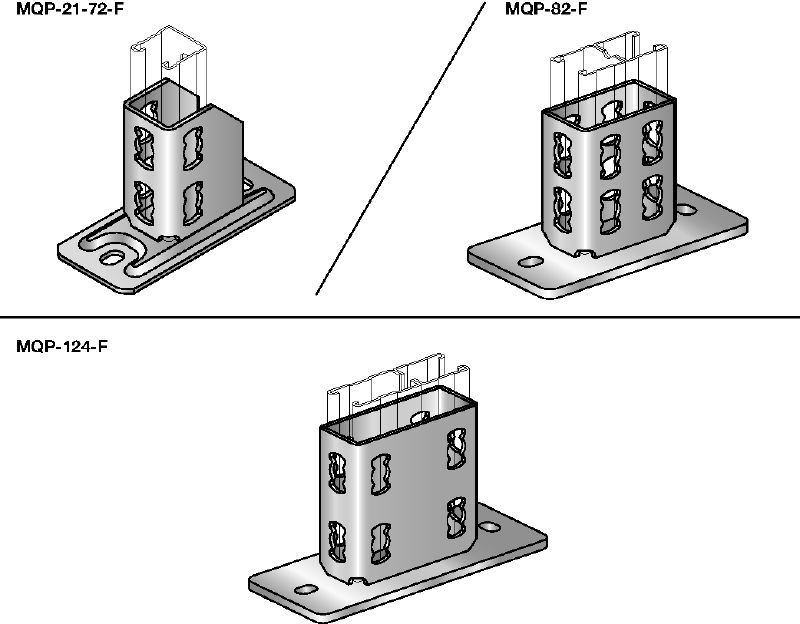

MQP-F Channel foot
New productItem #r2946
Hot-dip galvanized (HDG) channel foot for fastening channels to concrete
- Material composition: S235JR - DIN EN 10025
- Surface finish: Outdoor Coated - HDG
- Material thickness: Channel connector: 4 mm, baseplate: 4 mm
Features & Applications
Features & Applications
Features
- Flexibility – complete many different applications using few parts
- Acoustic insulation – when used with the MVI-P insulation plate for MQP-21-72 rail supports
- Compatible with MQN-C push button channel connectors – for much faster, adaptable assembly
Applications
- Connecting strut channels to various base materials
