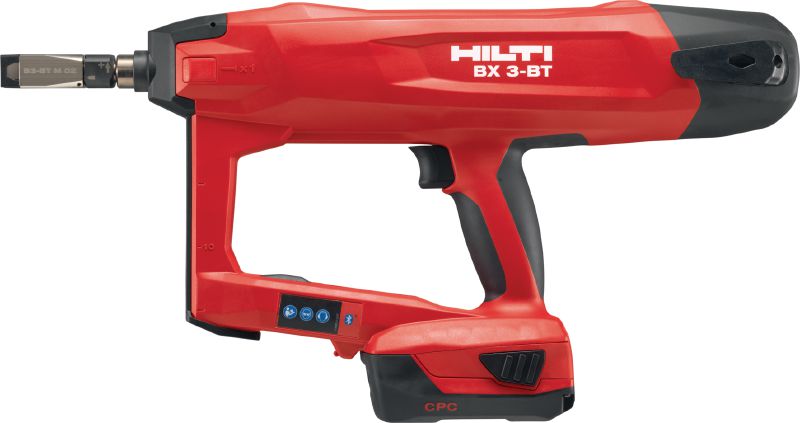

BX 3-BT (02) Cordless fastening tool
New productItem #r9808595
22V cordless nailer for fastening X-BT threaded stud
- Dimensions (LxWxH): 490 x 134 x 255 mm
- Tool body weight: 3.452 kg
- Fastener length range: 31 - 31 mm
Features & Applications
Features & Applications
Features
- Built on the second generation of Hilti’s combustion-free direct fastening technology – for high-quality and more reliable X-BT threaded stud fastening on steel
- Combustion-free operation – no powder cartridges to store and dispose
- Drives up to 800/500/400 fasteners with a single battery charge (depending on B22 battery model - 5.2, 3.0 or 2.6 Ah)
- Fastens X-BT threaded studs which do not require further reworking for corrosion protection on steel base material
- Ideal for use on high-strength coated steel 8 mm (5/16") or thicker
Applications

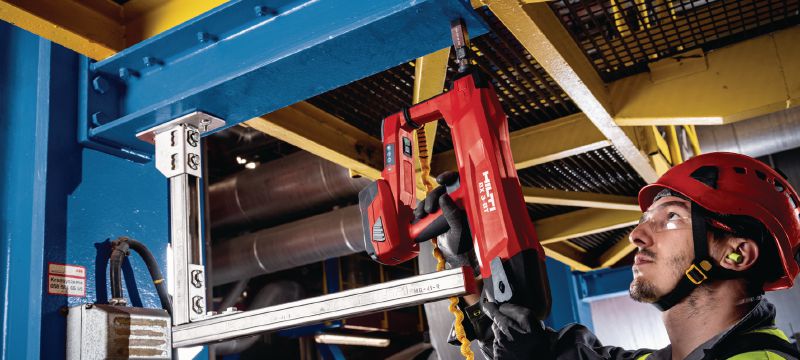

- Fastening cable trays, cable ladders, channels, struts, light-duty electrical installations (T-bars, instrumentation panels, junction boxes), fitting out and much more
- Fastenings X-BT threaded stud to fire coated (PFP) beams
- Fastening pipe supports and cable tray supports to steel
- Fastening handrails to steel
- Functional bonding, protective bonding, terminal connection, lightning protection, bonding, and earthing/grounding applications when fixing X-BT-ER threaded studs
